Cornell Dubilier Electronics (CDE)
CAP ALUM 22UF 20% 10V SMD

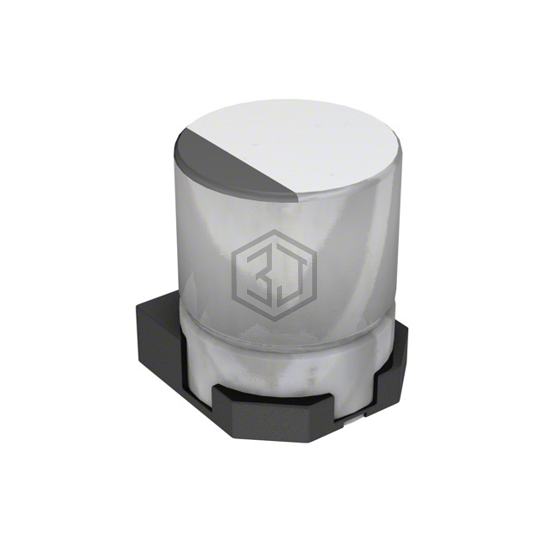

AVE226M10C12T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 8,173
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 18.09Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 39 mA @ 120 Hz |
| Ripple Current @ High Frequency | 48.75 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 865230342002 | Würth Elektronik | CAP ALUM 22UF 20% 16V SMD | 78% | View |
| EEE-HAC220WAR | Panasonic Electronic Components | CAP ALUM 22UF 20% 16V SMD | 77% | View |
| EMVY160ADA220ME55G | United Chemi-Con | CAP ALUM 22UF 20% 16V SMD | 69% | View |
| UUA1V220MCL1GS | Nichicon | CAP ALUM 22UF 20% 35V SMD | 68% | View |
| 16TZV22M4X6.1 | Rubycon | CAP ALUM 22UF 20% 16V SMD | 64% | View |
| EDK226M025A9GAA | KEMET | CAP ALUM 22UF 20% 25V SMD | 62% | View |
