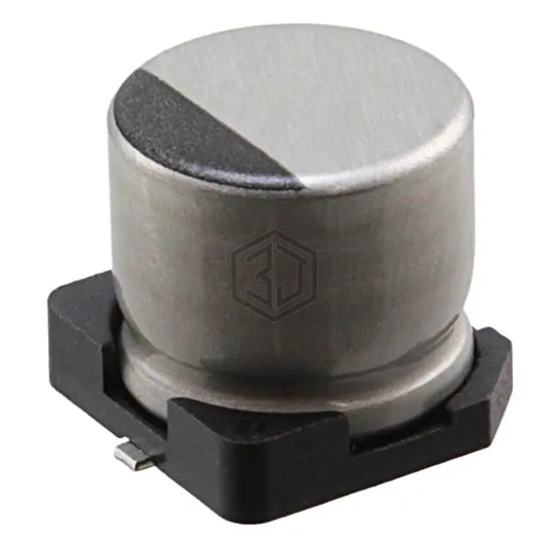

CAP ALUM 22UF 20% 35V SMD
UUA1V220MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 8,401
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 44 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35RZV22M6.3X5.5 | Rubycon | CAP ALUM 22UF 20% 35V SMD | 87% | View |
| UE226M050HEHTA | Aillen | CAP. ALUM 22UF 50V 20% SMD | 77% | View |
| 865080542006 | Würth Elektronik | CAP ALUM 22UF 20% 35V SMD | 73% | View |
| EMVY160ADA220ME55G | United Chemi-Con | CAP ALUM 22UF 20% 16V SMD | 67% | View |
| EEV226M016S9BAA | KEMET | CAP ALUM 22UF 20% 16V SMD | 60% | View |
| 16TZV22M4X6.1 | Rubycon | CAP ALUM 22UF 20% 16V SMD | 58% | View |
Submit your RFQ for UUA1V220MCL1GS and get a quote within 24 hours.
