Cornell Dubilier Electronics (CDE)
CAP ALUM 4.7UF 20% 80V SMD

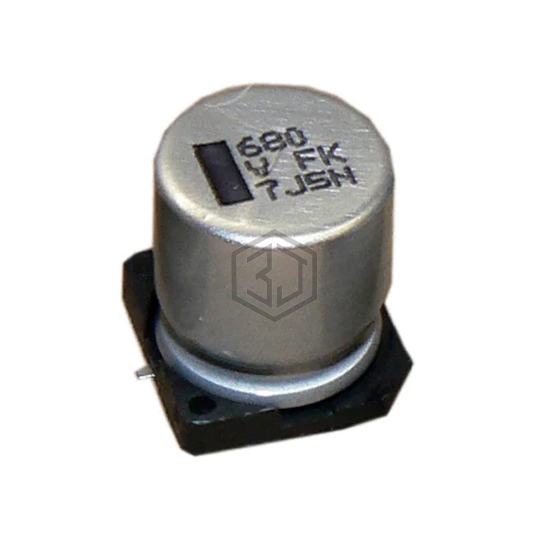

AFK475M80D16B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 4.7UF 20% 80V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - SMD.
In Stock: 3,807
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 3Ohm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 30 mA @ 120 Hz |
| Ripple Current @ High Frequency | 40 mA @ 100 kHz |
| Impedance | 3 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.307" W (6.60mm x 7.80mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AFK475M80D16B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWG1H4R7MCL1GB | Nichicon | CAP ALUM 4.7UF 20% 50V SMD | 79% | View |
| 475SMH050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4.7UF 20% 50V SMD | 76% | View |
| UUA1H4R7MCL1GS | Nichicon | CAP ALUM 4.7UF 20% 50V SMD | 74% | View |
| UUD1H4R7MCL1GS | Nichicon | CAP ALUM 4.7UF 20% 50V SMD | 64% | View |
| UUP1E4R7MCL1GS | Nichicon | CAP ALUM 4.7UF 20% 25V SMD | 52% | View |
| UUA1V4R7MCL1GS | Nichicon | CAP ALUM 4.7UF 20% 35V SMD | 52% | View |
Submit your RFQ for AFK475M80D16B-F and get a quote within 24 hours.
