Cornell Dubilier Electronics (CDE)
CAP ALUM 22UF 20% 6.3V SMD

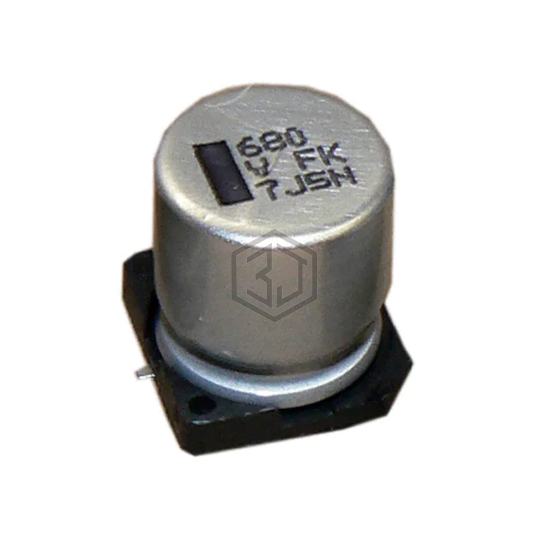

AFK226M06B12B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 2,208
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 1.35Ohm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 67.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 90 mA @ 100 kHz |
| Impedance | 1.35 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.169" L x 0.217" W (4.30mm x 5.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AFK226M06B12B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35RZV22M6.3X5.5 | Rubycon | CAP ALUM 22UF 20% 35V SMD | 72% | View |
| EEE-FN2A220V | Panasonic Electronic Components | CAP ALUM 22UF 20% 100V SMD | 65% | View |
| EMVY160ADA220ME55G | United Chemi-Con | CAP ALUM 22UF 20% 16V SMD | 65% | View |
| 865080542006 | Würth Elektronik | CAP ALUM 22UF 20% 35V SMD | 60% | View |
| 16TZV22M5X6.1 | Rubycon | CAP ALUM 22UF 20% 16V SMD | 56% | View |
| 6.3SKV22M4X5.5 | Rubycon | CAP ALUM 22UF 20% 6.3V SMD | 51% | View |
Submit your RFQ for AFK226M06B12B-F and get a quote within 24 hours.
