Cornell Dubilier Electronics (CDE)

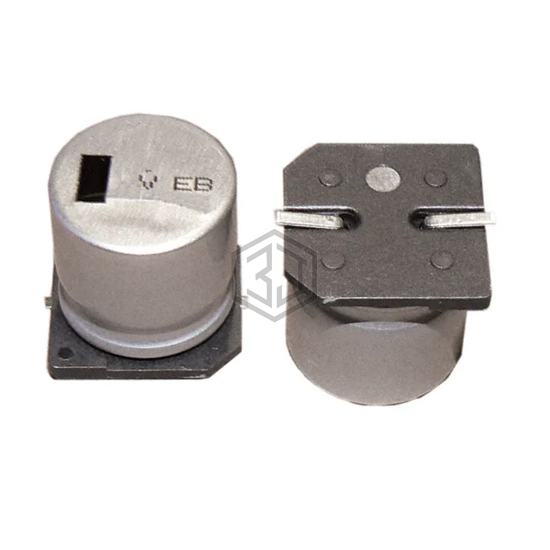

CAP ALUM 68UF 20% 160V SMD
AEB686M2CR44B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 68UF 20% 160V SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can - SMD.
In Stock: 2,555
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 412.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 750 mA @ 100 kHz |
| Impedance | 800 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AEB686M2CR44B-F is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVH161ATR680MMN0S | United Chemi-Con | CAP ALUM 68UF 20% 160V SMD | 91% | View |
| UUJ2D680MRQ6MS | Nichicon | CAP ALUM 68UF 20% 200V SMD | 84% | View |
| EEV-FK2A680Q | Panasonic Electronic Components | CAP ALUM 68UF 20% 100V SMD | 66% | View |
| MAL215099906E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 100V SMD | 59% | View |
| UCL1V680MCL1GS | Nichicon | CAP ALUM 68UF 20% 35V SMD | 57% | View |
| 35JZV68M6.3X8 | Rubycon | CAP ALUM 68UF 20% 35V SMD | 56% | View |
Submit your RFQ for AEB686M2CR44B-F and get a quote within 24 hours.
