CAP ALUM 68UF 20% 35V SMD

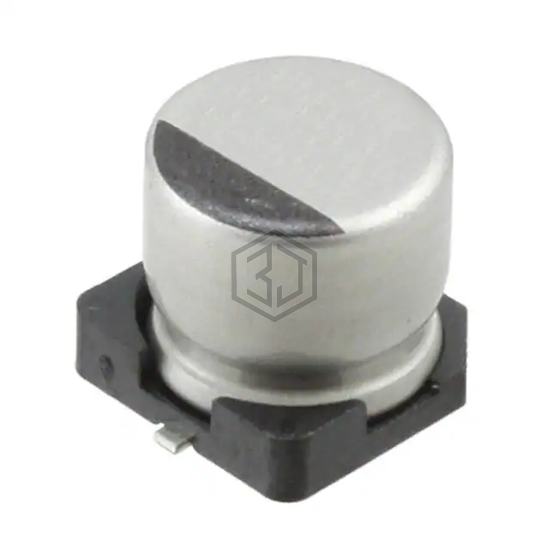

UCL1V680MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 5,178
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | 160 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35JZV68M6.3X8 | Rubycon | CAP ALUM 68UF 20% 35V SMD | 100% | View |
| EEE-FK1V680XP | Panasonic Electronic Components | CAP ALUM 68UF 20% 35V SMD | 68% | View |
| EEV-FK2A680Q | Panasonic Electronic Components | CAP ALUM 68UF 20% 100V SMD | 65% | View |
| EEE-FP1E680AV | Panasonic Electronic Components | CAP ALUM 68UF 20% 25V SMD | 63% | View |
| EEE-FN1V680UL | Panasonic Electronic Components | CAP ALUM 68UF 20% 35V SMD | 62% | View |
| AEA1213680M100R | KYOCERA AVX | ALUMINUM CAP | 61% | View |
Submit your RFQ for UCL1V680MCL1GS and get a quote within 24 hours.
