Cornell Dubilier Electronics (CDE)

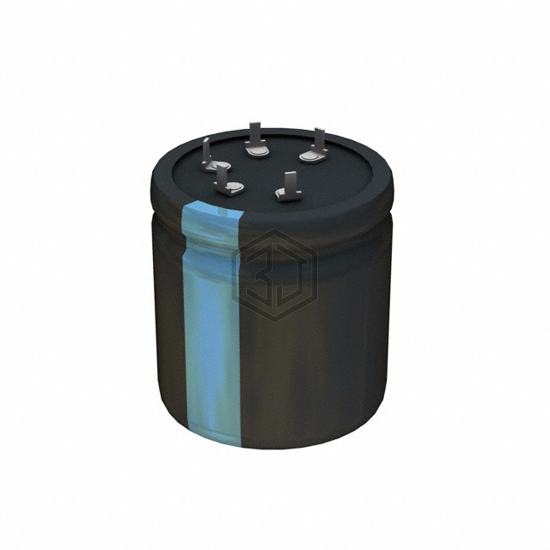

CAP ALUM 680UF 20% 450V SNAP
383LX681M450B052V is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 680UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In - 5 Lead.
In Stock: 3,565
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 244mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.06 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 5 Lead |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELHS451VSN681MA50S | United Chemi-Con | CAP ALUM 680UF 20% 450V SNAP | 88% | View |
| 200HXC680MEFCSN30X30 | Rubycon | CAP ALUM 680UF 20% 200V SNAP | 77% | View |
| LGW2D681MELB25 | Nichicon | CAP ALUM 680UF 20% 200V SNAP | 74% | View |
| B43504A2687M87 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 250V SNAP | 65% | View |
| B43505E2687M002 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 200V SNAP | 62% | View |
| ETXH251VSN681MA35S | United Chemi-Con | CAP ALUM 680UF 20% 250V SNAP | 60% | View |
