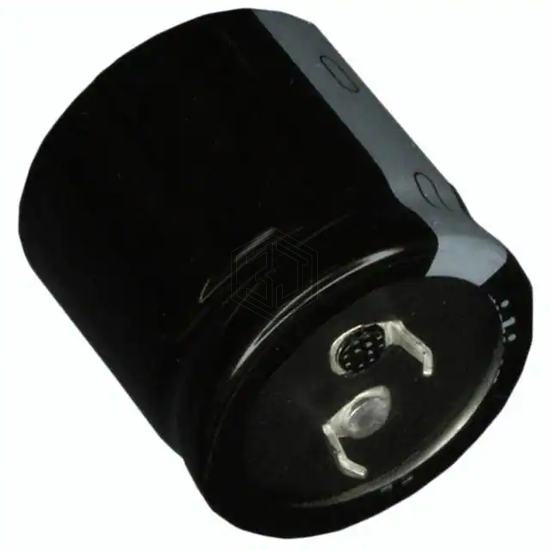

CAP ALUM 680UF 20% 200V SNAP
LGW2D681MELB25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 1,735
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.08 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.62 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43505E2687M002 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 200V SNAP | 89% | View |
| LGW2E681MELZ50 | Nichicon | CAP ALUM 680UF 20% 250V SNAP | 84% | View |
| B43504A2687M87 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 250V SNAP | 78% | View |
| B43508F2687M000 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 250V SNAP | 74% | View |
| LGG2Z681MELA30 | Nichicon | CAP ALUM 680UF 20% 180V SNAP | 68% | View |
| ELHS451VSN681MA50S | United Chemi-Con | CAP ALUM 680UF 20% 450V SNAP | 62% | View |
