Cornell Dubilier Electronics (CDE)
CAP ALUM 470UF 20% 80V SNAP

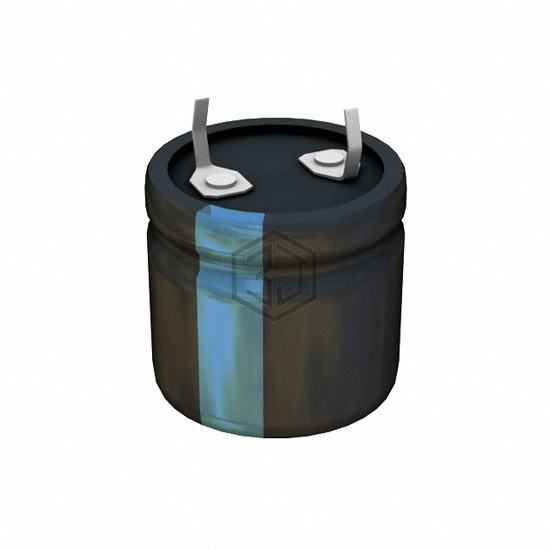

381LX471M080H202 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 470UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 9,859
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 800 mA @ 120 Hz |
| Ripple Current @ High Frequency | 900 mA @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
381LX471M080H202 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBX1K471MHL | Nichicon | CAP ALUM 470UF 20% 80V RADIAL | 86% | View |
| 477CKE063M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 470UF 20% 63V RADIAL | 83% | View |
| UBT1H471MNYGNACV | Nichicon | CAP ALUM 470UF 20% 50V RADIAL | 70% | View |
| EKZH160ETC471MHB5D | United Chemi-Con | CAP ALUM 470UF 20% 16V RADIAL | 65% | View |
| MAL214064471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 10V RADIAL | 58% | View |
| 25PX470MEFCTA8X11.5 | Rubycon | CAP ALUM 470UF 20% 25V RADIAL | 52% | View |
