CAP ALUM 470UF 20% 50V RADIAL

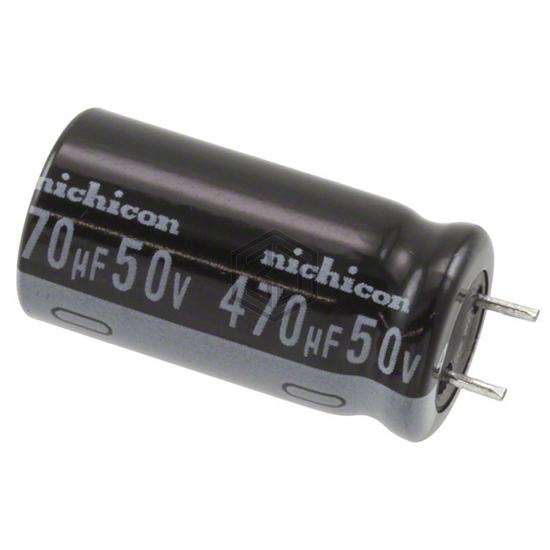

UBT1H471MNYGNACV is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,948
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 825 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.65 A @ 100 kHz |
| Impedance | 55 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBT1H471MHD1TD | Nichicon | CAP ALUM 470UF 20% 50V T/H | 100% | View |
| 50RX30470MCE12.5X25 | Rubycon | CAP ALUM 470UF 20% 50V RADIAL | 91% | View |
| UBX1K471MHL | Nichicon | CAP ALUM 470UF 20% 80V RADIAL | 82% | View |
| UBW1K471MHD1TN | Nichicon | CAP ALUM 470UF 20% 80V RADIAL | 75% | View |
| MAL212048471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V T/H | 73% | View |
| EGXE350ELL471MK20S | United Chemi-Con | CAP ALUM 470UF 20% 35V RADIAL | 72% | View |
Submit your RFQ for UBT1H471MNYGNACV and get a quote within 24 hours.
