Cornell Dubilier Electronics (CDE)

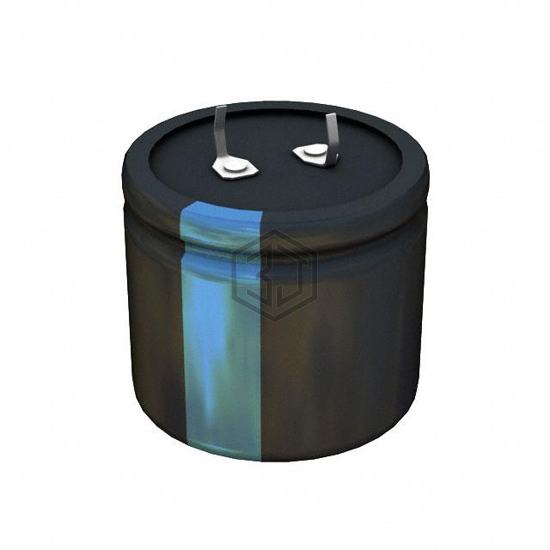

CAP ALUM 560UF 20% 250V SNAP
381EL561M250A022 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 560UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 8,883
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 260mOhm @ 120Hz |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.1 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
381EL561M250A022 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGN2E561MELZ45 | Nichicon | CAP ALUM 560UF 20% 250V SNAP | 98% | View |
| LGU2D561MELB | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 86% | View |
| 35ZLJ560MT810X20 | Rubycon | CAP ALUM 560UF 20% 35V RADIAL | 73% | View |
| B43508A9567M2 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 72% | View |
| EKYA630ELL561MK25S | United Chemi-Con | CAP ALUM 560UF 20% 63V RADIAL | 68% | View |
| B43545A5567M062 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 52% | View |
Submit your RFQ for 381EL561M250A022 and get a quote within 24 hours.
