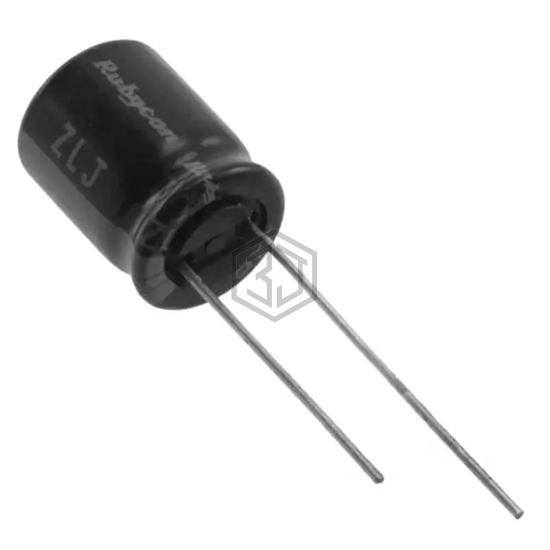

CAP ALUM 560UF 20% 35V RADIAL
35ZLJ560MT810X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 560UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 6,365
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.375 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.5 A @ 100 kHz |
| Impedance | 28 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 510DX567M050DT5D | Vishay Sprague | CAP ALUM 560UF 20% 50V RADIAL | 77% | View |
| EKYC101ELL561MM20S | Chemi-Con | CAP ALUM 560UF 20% 100V TH | 77% | View |
| LGU2D561MELB | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 74% | View |
| LGN2E561MELZ45 | Nichicon | CAP ALUM 560UF 20% 250V SNAP | 74% | View |
| EKYA630ELL561MK25S | United Chemi-Con | CAP ALUM 560UF 20% 63V RADIAL | 72% | View |
| 180MXG560MEFCSN22X40 | Rubycon | CAP ALUM 560UF 20% 180V SNAP | 56% | View |
