Cornell Dubilier Electronics (CDE)
CAP ALUM 2200UF 20% 180V SNAP

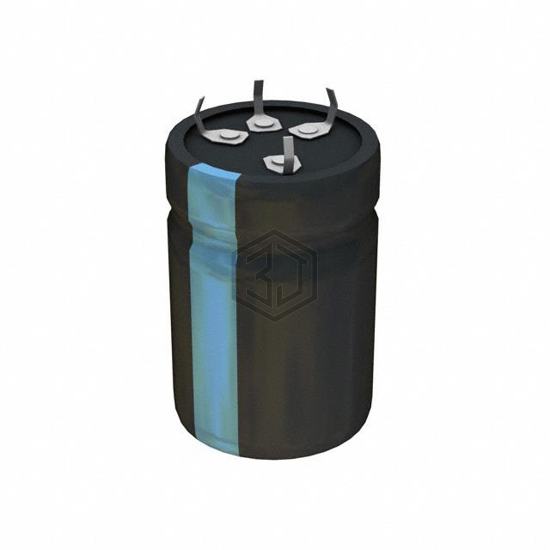

381EL222M180A052 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 2200UF 20% 180V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 180 V, package / case Radial, Can - Snap-In.
In Stock: 8,728
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 180 V |
| ESR (Equivalent Series Resistance) | 90mOhm @ 120Hz |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.06 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
381EL222M180A052 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41890A5228M | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 25V RADIAL | 63% | View |
| RXK222M1VBK-1636S | SURGE | CAP ALUM 2200UF 20% 35V RADIAL | 62% | View |
| 80MXC2200MEFCSN25X30 | Rubycon | CAP ALUM 2200UF 20% 80V SNAP | 57% | View |
| LGY1K222MELB25 | Nichicon | CAP ALUM 2200UF 20% 80V SNAP | 56% | View |
| 381LX222M063H022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 63V SNAP | 56% | View |
| SEK222M025ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for 381EL222M180A052 and get a quote within 24 hours.
