CAP ALUM 2200UF 20% 80V SNAP

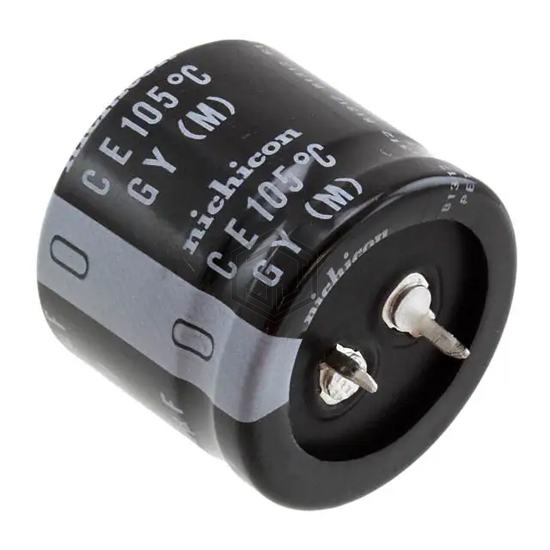

LGY1K222MELB25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 7,756
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.3 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 80MXC2200MEFCSN25X30 | Rubycon | CAP ALUM 2200UF 20% 80V SNAP | 99% | View |
| 381LX222M063H022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 63V SNAP | 85% | View |
| EKMH101VSN222MQ50T | United Chemi-Con | CAP ALUM 2200UF 20% 100V SNAP | 81% | View |
| 50RXF2200MEFC18X30 | Rubycon | CAP ALUM 2200UF 20% 50V RADIAL | 73% | View |
| RXK222M1VBK-1636S | SURGE | CAP ALUM 2200UF 20% 35V RADIAL | 73% | View |
| URZ1H222MRD | Nichicon | CAP ALUM 2200UF 20% 50V RADIAL | 63% | View |
Submit your RFQ for LGY1K222MELB25 and get a quote within 24 hours.
