Cornell Dubilier Electronics (CDE)
CAP ALUM 68UF 20% 450V SNAP

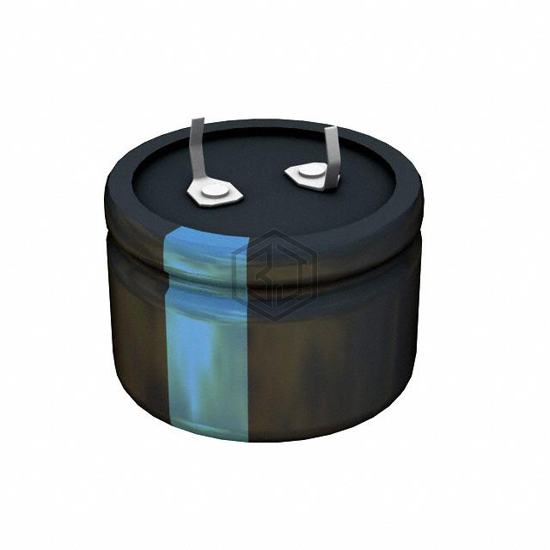

380LX680M450K202 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 68UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 3,265
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 2.926Ohm |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 400 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
380LX680M450K202 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450VXR68MEFCSN25X30 | Rubycon | CAP ALUM 68UF 20% 450V SNAP | 91% | View |
| EKWA421ELL680MUN3S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 88% | View |
| VHT68M350 | NTE Electronics, Inc | CAP ALUM 68UF 20% 350V RADIAL | 84% | View |
| 200WXA68MEFC16X20 | Rubycon | CAP ALUM 68UF 20% 200V RADIAL | 68% | View |
| MAL211929689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 100V AXIAL | 65% | View |
| EEU-FS2A680L | Panasonic Electronic Components | CAP ALUM 68UF 20% 100V RADIAL | 60% | View |
Submit your RFQ for 380LX680M450K202 and get a quote within 24 hours.
