Cornell Dubilier Electronics (CDE)
CAP ALUM 560UF 20% 180V SNAP

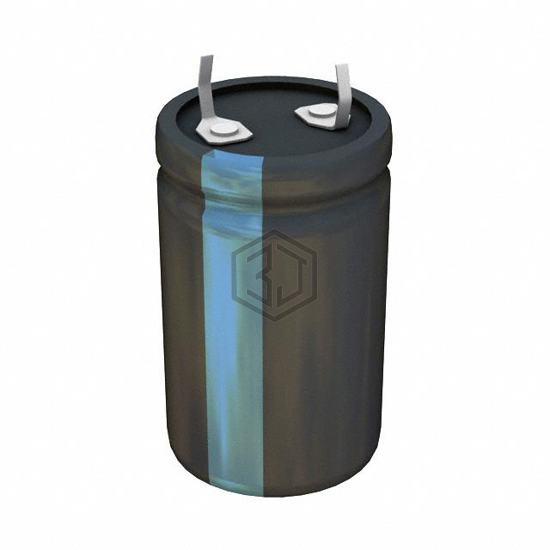

380LX561M180H032 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 560UF 20% 180V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 180 V, package / case Radial, Can - Snap-In.
In Stock: 2,053
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 180 V |
| ESR (Equivalent Series Resistance) | 355mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.3 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
380LX561M180H032 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGW2D561MELZ35 | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 95% | View |
| ALC70A561BD200 | KEMET | CAP ALUM 560UF 20% 200V SNAP | 87% | View |
| B43644A2567M007 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 85% | View |
| LKX2D561MESA35 | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 84% | View |
| LP561M200H3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 200V SNAP | 77% | View |
| ALC70A561DD350 | KEMET | CAP ALUM 560UF 20% 350V SNAP | 69% | View |
Submit your RFQ for 380LX561M180H032 and get a quote within 24 hours.
