Cornell Dubilier Electronics (CDE)

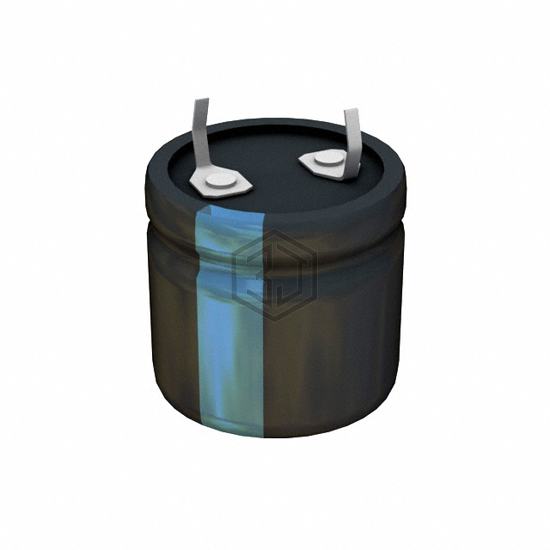

CAP ALUM 470UF 20% 100V SNAP
380LX471M100H202 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 470UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 6,168
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 450mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
380LX471M100H202 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM2A471MHD | Nichicon | CAP ALUM 470UF 20% 100V RADIAL | 82% | View |
| EEU-FM1C471LBJ | Panasonic Electronic Components | CAP ALUM 470UF 20% 16V RADIAL | 69% | View |
| KY50VB471M10X30LL | United Chemi-Con | CAP ALUM 470UF 20% 50V RADIAL | 66% | View |
| KY35VB471M12X15LL | United Chemi-Con | CAP ALUM 470UF 20% 35V RADIAL | 61% | View |
| 477CKH050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 470UF 20% 50V RADIAL | 56% | View |
| B43504B9477M62 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 400V SNAP | 50% | View |
Submit your RFQ for 380LX471M100H202 and get a quote within 24 hours.
