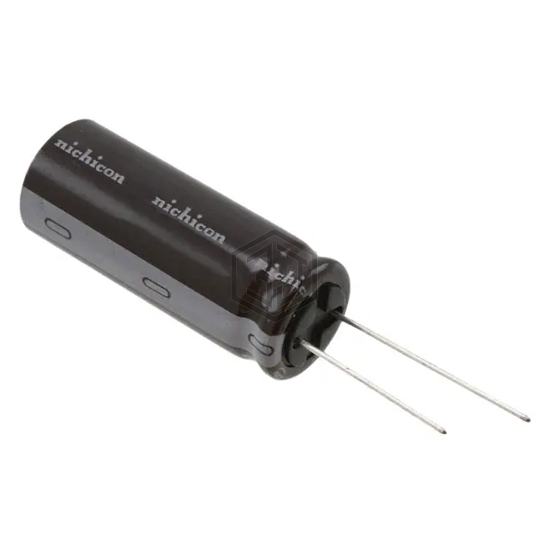

CAP ALUM 470UF 20% 100V RADIAL
UPM2A471MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 4,419
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.76 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.2 A @ 10 kHz |
| Impedance | 47 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM2A471MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41896C7477M002 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 35V RADIAL | 69% | View |
| LXZ63VB471M16X20LL | United Chemi-Con | CAP ALUM 470UF 20% 63V RADIAL | 66% | View |
| 678D477M050DS5D | Vishay Sprague | CAP ALUM 470UF 20% 50V RADIAL | 62% | View |
| B41858C7477M8 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 35V RADIAL | 60% | View |
| ELXZ250ELL471MH20D | United Chemi-Con | CAP ALUM 470UF 20% 25V RADIAL | 56% | View |
| ELXY350ELL471MJ30S | United Chemi-Con | CAP ALUM 470UF 20% 35V RADIAL | 56% | View |
