Cornell Dubilier Electronics (CDE)
CAP ALUM 10000UF 20% 16V SNAP

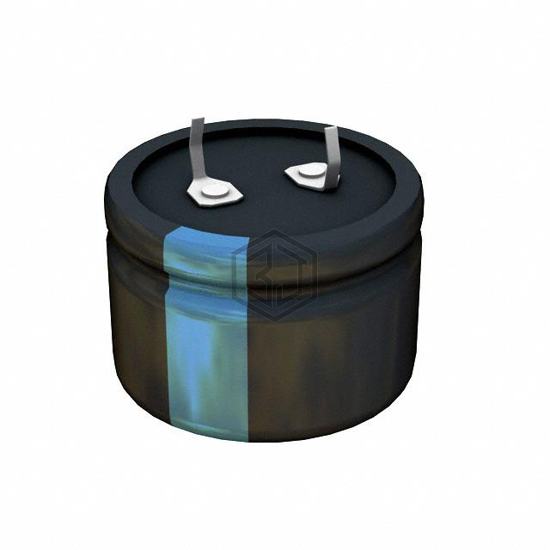

380LX103M016K202 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 10000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 5,808
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 84mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.8 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
380LX103M016K202 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESMH250VSN103MQ30U | United Chemi-Con | CAP ALUM 10000UF 20% 25V SNAP | 76% | View |
| ESMH250VNN103MQ30U | United Chemi-Con | CAP ALUM 10000UF 20% 25V SNAP | 76% | View |
| ESMH350VSN103MA25S | United Chemi-Con | CAP ALUM 10000UF 20% 35V SNAP | 70% | View |
| 109LBA025M2DC | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10000UF 20% 25V SNAP | 69% | View |
| 6.3ZLQ10000MEFC12.5X35 | Rubycon | CAP ALUM 10000UF 20% 6.3V RADIAL | 69% | View |
| B41505A7109M002 | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 35V SNAP | 65% | View |
Submit your RFQ for 380LX103M016K202 and get a quote within 24 hours.
