Cornell Dubilier / Illinois Capacitor
CAP ALUM 100UF 20% 35V SMD

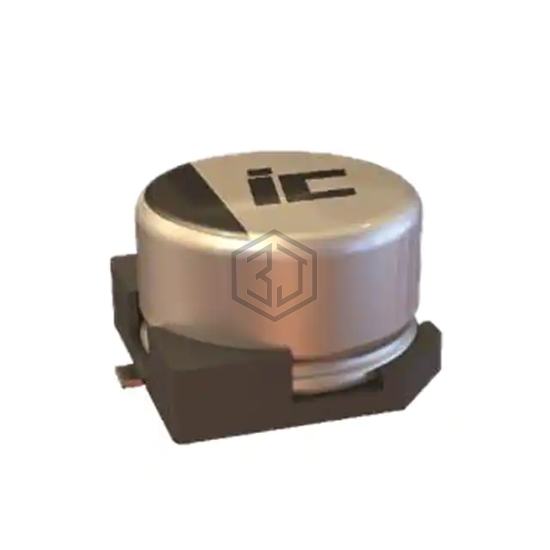

ATB107M035 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 100UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 6,208
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 1.86Ohm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Bypass, Decoupling |
| Ripple Current @ Low Frequency | 420 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | 340 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.339" W (8.30mm x 8.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FP1H101AL | Panasonic Electronic Components | CAP ALUM 100UF 20% 50V SMD | 86% | View |
| 35JZV100M8X10.5 | Rubycon | CAP ALUM 100UF 20% 35V SMD | 84% | View |
| UCL1V101MCL6GS | Nichicon | CAP ALUM 100UF 20% 35V SMD | 84% | View |
| EEE-FP1E101AV | Panasonic Electronic Components | CAP ALUM 100UF 20% 25V SMD | 79% | View |
| EMVY350ADA101MHA0G | United Chemi-Con | CAP ALUM 100UF 20% 35V SMD | 75% | View |
| VUJ101M1HTR-1313S | SURGE | CAP ALUM 100UF 20% 50V SMD | 74% | View |
