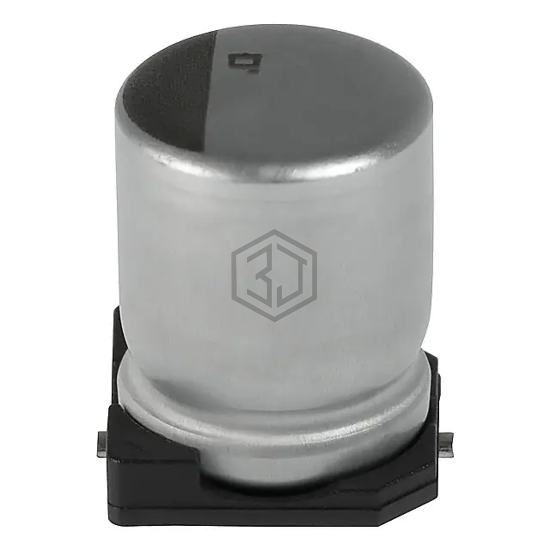

CAP ALUM 100UF 20% 35V SMD
EMVY350ADA101MHA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 100UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 2,726
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 450 mA @ 100 kHz |
| Impedance | 300 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FT1V101AP | Panasonic Electronic Components | CAP ALUM 100UF 20% 35V SMD | 88% | View |
| UZ107M035HEJTA | Aillen | CAP. ALUM 100UF 35V 20% SMD | 86% | View |
| VUJ101M1HTR-1313S | SURGE | CAP ALUM 100UF 20% 50V SMD | 83% | View |
| EEE-FN1H101P | Panasonic Electronic Components | CAP ALUM 100UF 20% 50V SMD | 78% | View |
| AEA1213101M080R | KYOCERA AVX | ALUMINUM CAP | 77% | View |
| 35JZV100M8X10.5 | Rubycon | CAP ALUM 100UF 20% 35V SMD | 76% | View |
Submit your RFQ for EMVY350ADA101MHA0G and get a quote within 24 hours.
