Cornell Dubilier / Illinois Capacitor
CAP ALUM 6800UF 20% 63V SNAP

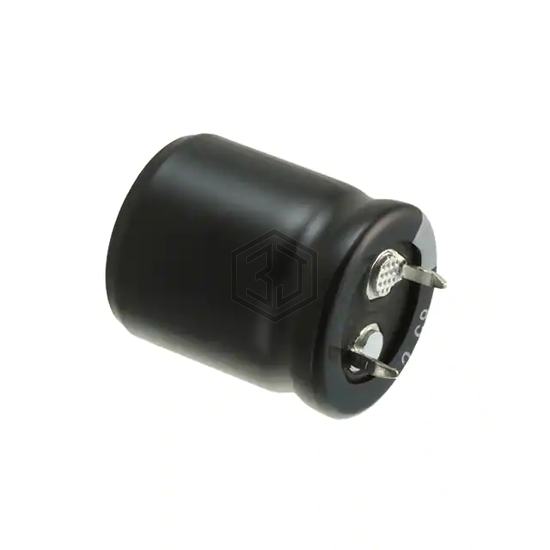

688LBB063M2ED is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 6800UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 2,634
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 48.76mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.15 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.1875 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH500VNN682MQ40U | United Chemi-Con | CAP ALUM 6800UF 20% 50V SNAP | 85% | View |
| ESMQ500ELL682MP50S | United Chemi-Con | CAP ALUM 6800UF 20% 50V RADIAL | 85% | View |
| LKS1H682MESC | Nichicon | CAP ALUM 6800UF 20% 50V SNAP | 82% | View |
| 50MXC6800MEFC30X35 | Rubycon | CAP ALUM 6800UF 20% 50V SNAP | 80% | View |
| B41505A6688M002 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 50V SNAP | 79% | View |
| LGY1H682MELB35 | Nichicon | CAP ALUM 6800UF 20% 50V SNAP | 67% | View |
Submit your RFQ for 688LBB063M2ED and get a quote within 24 hours.
