Cornell Dubilier / Illinois Capacitor

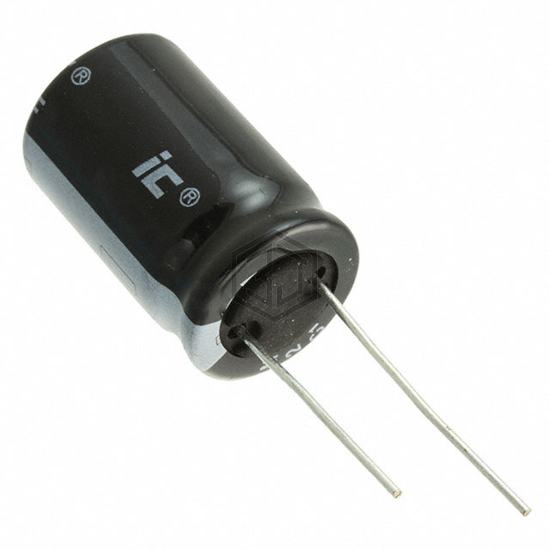

CAP ALUM 6800UF 20% 10V RADIAL
688CKS010M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 6800UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 2,063
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 75.6mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.61 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.654 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225064682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 10V RADIAL | 90% | View |
| ESMG160ELL682MLN3S | United Chemi-Con | CAP ALUM 6800UF 20% 16V RADIAL | 78% | View |
| 688TTA016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 6800UF 20% 16V AXIAL | 78% | View |
| ELXV160ELL682MM35S | United Chemi-Con | CAP ALUM 6800UF 20% 16V RADIAL | 77% | View |
| MAL214665682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 16V RADIAL | 75% | View |
| LGU1V682MELB | Nichicon | CAP ALUM 6800UF 20% 35V SNAP | 68% | View |
