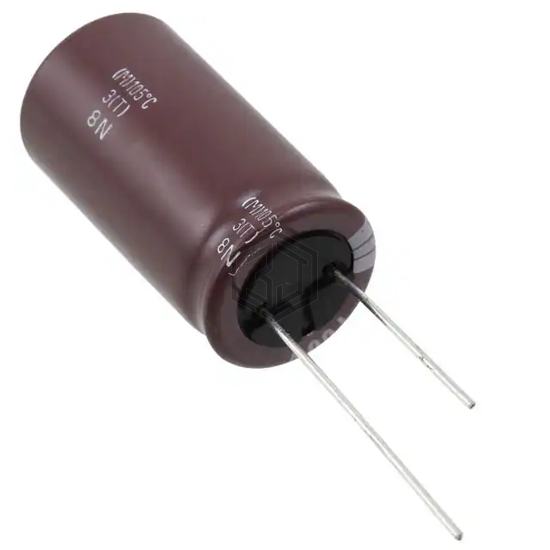

CAP ALUM 6800UF 20% 16V RADIAL
ELXV160ELL682MM35S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 6800UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 1,555
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 2.135 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.05 A @ 100 kHz |
| Impedance | 21 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.437" (36.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214665682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 16V RADIAL | 99% | View |
| B41858C4688M000 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 16V RADIAL | 95% | View |
| MAL225064682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 10V RADIAL | 85% | View |
| MAL225056682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 25V RADIAL | 79% | View |
| 860080280026 | Würth Elektronik | CAP ALUM 6800UF 20% 10V RADIAL | 75% | View |
| ELXZ6R3ELL682MM20S | United Chemi-Con | CAP ALUM 6800UF 20% 6.3V RADIAL | 74% | View |
Submit your RFQ for ELXV160ELL682MM35S and get a quote within 24 hours.
