Cornell Dubilier / Illinois Capacitor

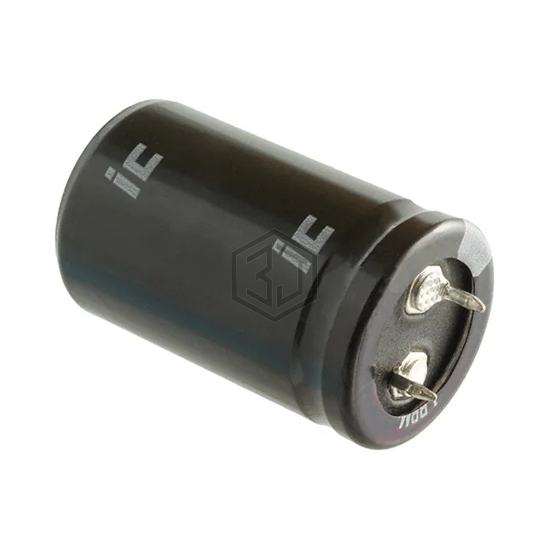

CAP ALUM 3300UF 20% 100V SNAP
338LBB100M2DF is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 3300UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 1,061
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 75.36mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.05 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.0625 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESMH101VNN332MR40W | United Chemi-Con | CAP ALUM 3300UF 20% 100V SNAP | 99% | View |
| 380LX332M080K022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 20% 80V SNAP | 80% | View |
| E80D630VNN332AQ50U | United Chemi-Con | CAP ALUM 3300UF 63V SNAP | 75% | View |
| 861020785017 | Würth Elektronik | CAP ALUM 3300UF 20% 63V SNAP | 63% | View |
| B41858D7338M002 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 35V RADIAL | 60% | View |
| 16ZLH3300MEFCGC16X20 | Rubycon | CAP ALUM 3300UF 20% 16V RADIAL | 55% | View |
Submit your RFQ for 338LBB100M2DF and get a quote within 24 hours.
