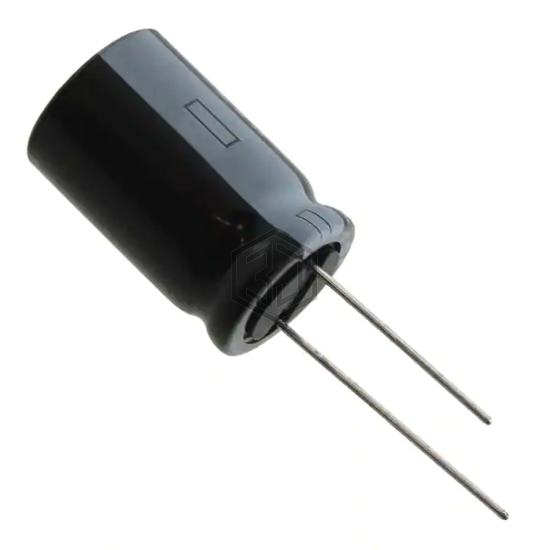

CAP ALUM 3300UF 20% 16V RADIAL
16ZLH3300MEFCGC16X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 3300UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,574
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.275 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.25 A @ 100 kHz |
| Impedance | 15 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FK1E332L | Panasonic Electronic Components | CAP ALUM 3300UF 20% 25V RAD TH | 85% | View |
| MAL212045332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V T/H | 82% | View |
| 861020785017 | Würth Elektronik | CAP ALUM 3300UF 20% 63V SNAP | 76% | View |
| EGXE160ELL332MLN3S | United Chemi-Con | CAP ALUM 3300UF 20% 16V RADIAL | 72% | View |
| B41858D7338M002 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 35V RADIAL | 70% | View |
| EEU-FC0J332S | Panasonic Electronic Components | CAP ALUM 3300UF 20% 6.3V RADIAL | 54% | View |
