Cornell Dubilier / Illinois Capacitor
CAP ALUM 33UF 20% 400V RADIAL

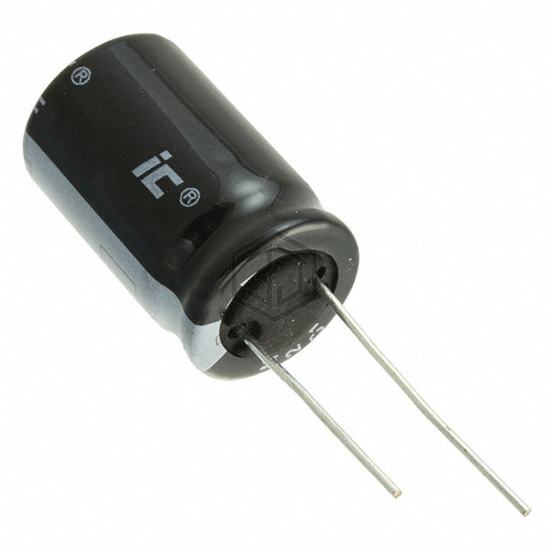

336CKS400M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 33UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 1,885
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 10.048Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 260 mA @ 120 Hz |
| Ripple Current @ High Frequency | 468 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECA-2GM330B | Panasonic Electronic Components | CAP ALUM 33UF 20% 400V RADIAL | 99% | View |
| MALREKA05JG233P00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 450V RADIAL | 91% | View |
| ULD2W330MHD6TN | Nichicon | CAP ALUM 33UF 20% 450V RADIAL | 88% | View |
| LAKW6330MELZ25 | Nichicon | CAP ALUM 33UF 20% 420V SNAP | 86% | View |
| B43858B5336M009 | EPCOS - TDK Electronics | CAP ALUM 450V POLAR | 79% | View |
| 35ZLG33MEFCTZ6.3X7 | Rubycon | CAP ALUM 33UF 20% 35V RADIAL | 52% | View |
Submit your RFQ for 336CKS400M and get a quote within 24 hours.
