CAP ALUM 33UF 20% 450V RADIAL

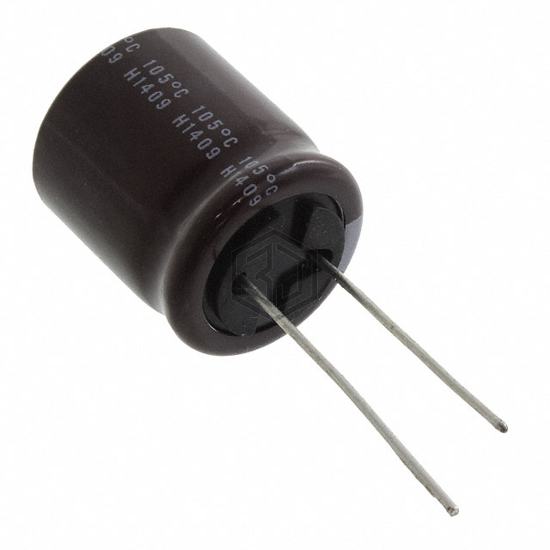

ULD2W330MHD6TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 1,726
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 20000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 312 mA @ 120 Hz |
| Ripple Current @ High Frequency | 561.6 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
ULD2W330MHD6TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450BXW33MEFR12.5X25 | Rubycon | CAP ALUM 33UF 20% 450V RADIAL | 85% | View |
| EKXL421ELL330MK25S | United Chemi-Con | CAP ALUM 33UF 20% 420V RADIAL TH | 85% | View |
| 500LXW33MEFR18X20 | Rubycon | CAP ALUM 33UF 20% 500V RADIAL | 79% | View |
| UCY2C330MPD | Nichicon | CAP ALUM 33UF 20% 160V RADIAL | 73% | View |
| URZ2E330MHD1TN | Nichicon | CAP ALUM 33UF 20% 250V RADIAL | 69% | View |
| EEU-TA1J330 | Panasonic Electronic Components | CAP ALUM 33UF 20% 63V RADIAL | 68% | View |
