Cornell Dubilier / Illinois Capacitor
CAP FILM 0.33UF 10% 800VAC CHASS

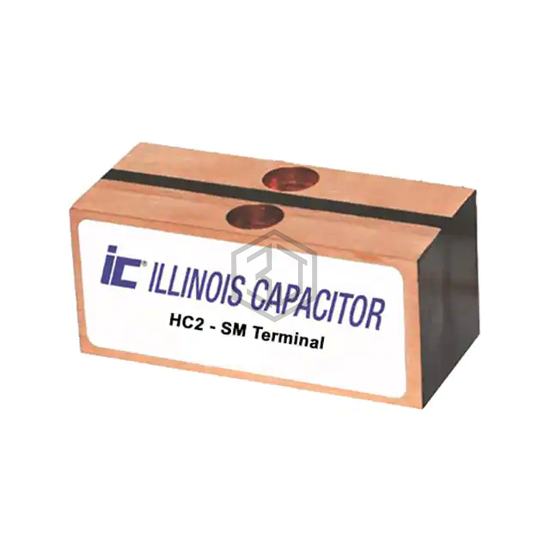

334HC2800K2SM6 is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 0.33UF 10% 800VAC CHASS. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - ac 800V, package / case Nonstandard.
In Stock: 4,350
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.33 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 800V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 0.8 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 2.677" L x 1.189" W (68.00mm x 30.20mm) |
| Height - Seated (Max) | 1.201" (30.50mm) |
| Termination | Threaded, Female |
| Lead Spacing | - |
| Applications | Conduction Cooled; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP386M433250JT4 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.33UF 5% 2.5KVDC SCREW | 100% | View |
| MKP386M433250JT2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.33UF 5% 2.5KVDC SCREW | 100% | View |
| MKP386M433250JT3 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.33UF 5% 2.5KVDC SCREW | 100% | View |
| PMB2303330KSP | Nichicon | FILM CAP BOXED LUGS | 99% | View |
| 334HC1700K2CM6 | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.33UF 700VAC CHAS MT | 98% | View |
| 334HC3700K4VM6 | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.33UF 700VAC CHAS MT | 98% | View |
Submit your RFQ for 334HC2800K2SM6 and get a quote within 24 hours.
