Vishay Beyschlag/Draloric/BC Components

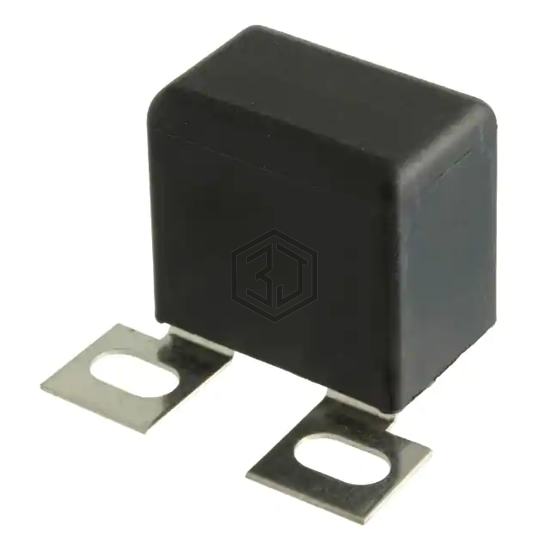

CAP FILM 0.33UF 5% 2.5KVDC SCREW
MKP386M433250JT4 is a Film Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP FILM 0.33UF 5% 2.5KVDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 105°C, voltage rating - dc 2500V (2.5kV), package / case Rectangular Box.
In Stock: 9,514
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.33 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 800V |
| Voltage Rating - DC | 2500V (2.5kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 6 mOhms |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.732" L x 1.181" W (44.00mm x 30.00mm) |
| Height - Seated (Max) | 1.811" (46.00mm) |
| Termination | Screw Terminals |
| Lead Spacing | 1.496" (38.00mm) |
| Applications | Snubber |
| Ratings | - |
| Features | Low ESR |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP386M433250JT8 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.33UF 5% 2.5KVDC SCREW | 100% | View |
| MKP386M433250JT2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.33UF 5% 2.5KVDC SCREW | 100% | View |
| MKP386M433250JT3 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.33UF 5% 2.5KVDC SCREW | 100% | View |
| MKP386M433200JT6 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.33UF 5% 2KVDC SCREW | 95% | View |
| MKP386M433200JT1 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.33UF 5% 2KVDC SCREW | 95% | View |
| MKP386M433200JT3 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.33UF 5% 2KVDC SCREW | 95% | View |
Submit your RFQ for MKP386M433250JT4 and get a quote within 24 hours.
