Cornell Dubilier / Illinois Capacitor
CAP ALUM 2200UF 20% 80V SNAP

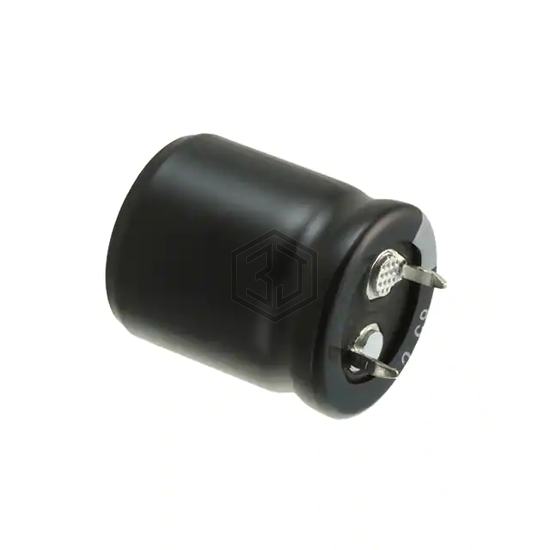

228LBB080M2CD is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 2200UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 2,791
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 113.04mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.46 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.075 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKG1K222MESBAK | Nichicon | CAP ALUM 2200UF 20% 80V SNAP | 99% | View |
| 80MXC2200MEFCSN22X40 | Rubycon | CAP ALUM 2200UF 20% 80V SNAP | 89% | View |
| LKS2A222MESC | Nichicon | CAP ALUM 2200UF 20% 100V SNAP | 85% | View |
| ED1C222MP51025P9 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 60% | View |
| LKG1E222MESCCK | Nichicon | CAP ALUM 2200UF 20% 25V SNAP | 60% | View |
| LAR2D222MELC45 | Nichicon | CAP ALUM 2200UF 20% 200V SNAP | 58% | View |
Submit your RFQ for 228LBB080M2CD and get a quote within 24 hours.
