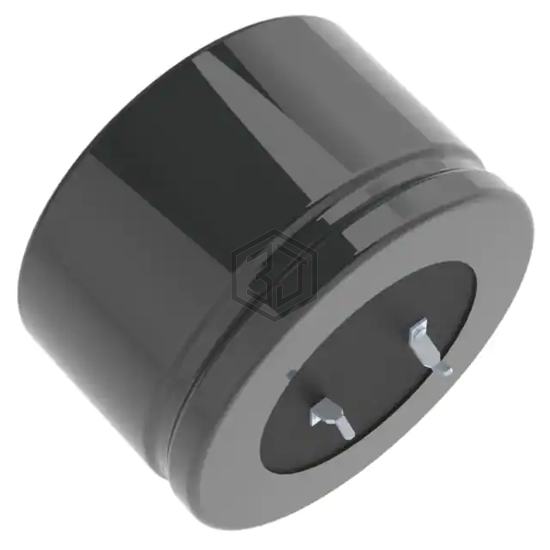

CAP ALUM 2200UF 20% 25V SNAP
LKG1E222MESCCK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 9,004
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.75 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URS1V222MHD1TN | Nichicon | CAP ALUM 2200UF 20% 35V RADIAL | 82% | View |
| URZ1V222MHD1TN | Nichicon | CAP ALUM 2200UF 20% 35V RADIAL | 71% | View |
| B41607B7228M2 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 40V SNAP | 70% | View |
| 228CKS063M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 2200UF 20% 63V RADIAL | 63% | View |
| B41858C3228M002 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 10V RADIAL | 56% | View |
| LKS2A222MESC | Nichicon | CAP ALUM 2200UF 20% 100V SNAP | 54% | View |
