Cornell Dubilier / Illinois Capacitor

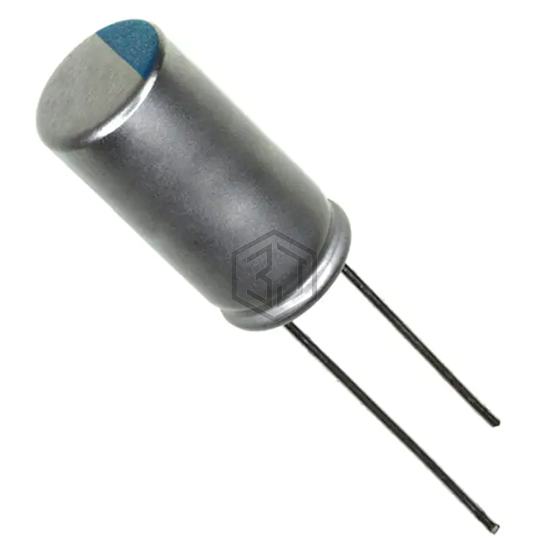

CAP ALUM POLY 1200UF 6.3V T/H
128ULR6R3MFH is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM POLY 1200UF 6.3V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 2,674
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 7mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | 305 mA @ 120 Hz |
| Ripple Current @ High Frequency | 6.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 128ULR010MEF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 1200UF 20% 10V T/H | 85% | View |
| 4SEQP1200M | Panasonic Electronic Components | CAP ALUM POLY 1200UF 20% 4V T/H | 81% | View |
| PLS0G122MDO1TD | Nichicon | CAP ALUM POLY 1200UF 20% 4V T/H | 78% | View |
| RNU0G122MDN1KX | Nichicon | CAP ALUM POLY 1200UF 20% 4V T/H | 70% | View |
| RNS0G122MDN1PH | Nichicon | CAP ALUM POLY 1200UF 20% 4V T/H | 70% | View |
| RNU1A122MDN1PH | Nichicon | CAP ALUM POLY 1200UF 20% 10V T/H | 69% | View |
