Cornell Dubilier / Illinois Capacitor
CAP ALUM POLY 1200UF 20% 10V T/H

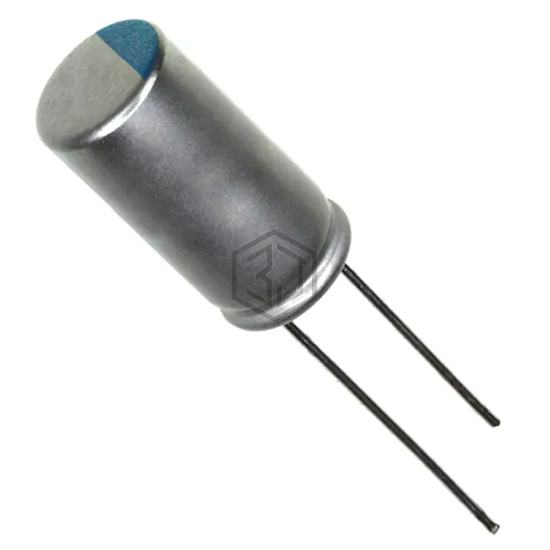

128ULR010MEF is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM POLY 1200UF 20% 10V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 6,327
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 8mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | 310 mA @ 120 Hz |
| Ripple Current @ High Frequency | 6.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 128ULR6R3MFH | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 1200UF 6.3V T/H | 85% | View |
| 870235175007 | Würth Elektronik | CAP ALUM POLY 1200UF 6.3V T/H | 83% | View |
| UPS0J122MCG0811 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 78% | View |
| 4SEQP1200M | Panasonic Electronic Components | CAP ALUM POLY 1200UF 20% 4V T/H | 73% | View |
| RNU0J122MDN1 | Nichicon | CAP ALUM POLY 1200UF 20% 6.3V TH | 69% | View |
| PLS0G122MDO1TD | Nichicon | CAP ALUM POLY 1200UF 20% 4V T/H | 68% | View |
Submit your RFQ for 128ULR010MEF and get a quote within 24 hours.
