Cornell Dubilier / Illinois Capacitor

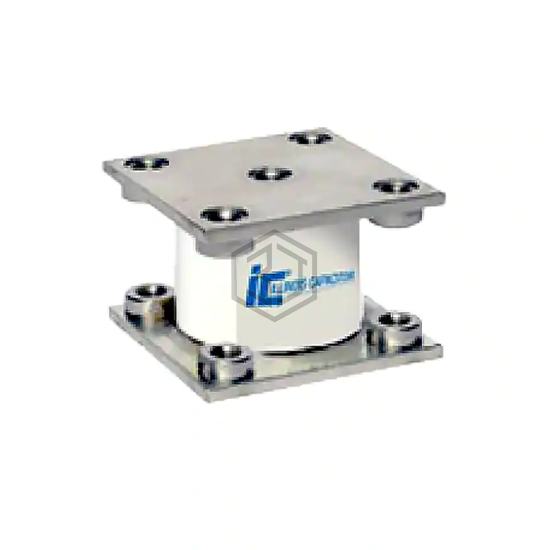

CAP FILM 1.2UF 500VAC CHAS MT
125LC2500K5HM6 is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 1.2UF 500VAC CHAS MT. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - ac 500V, package / case Nonstandard.
In Stock: 1,753
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1.2 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 0.5 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 1.969" L x 1.969" W (50.00mm x 50.00mm) |
| Height - Seated (Max) | 1.339" (34.00mm) |
| Termination | Threaded, Female |
| Lead Spacing | - |
| Applications | Conduction Cooled; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP386M512125JT1 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1.2UF 5% 1.25KVDC SCREW | 98% | View |
| MKP386M512125JT3 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1.2UF 5% 1.25KVDC SCREW | 98% | View |
| PMB2104120KBN | Nichicon | FILM CAP BOXED LUGS | 98% | View |
| 125HC3B600K2SM6 | Cornell Dubilier / Illinois Capacitor | CAP FILM 1.2UF 10% 600VAC CHASSI | 97% | View |
| C4BSPBX4120ZBJJ | KEMET | CAP FILM 1.2UF 5% 1.2KVDC SCREW | 96% | View |
| PMB2204120KFP | Nichicon | FILM CAP BOXED LUGS | 94% | View |
Submit your RFQ for 125LC2500K5HM6 and get a quote within 24 hours.
