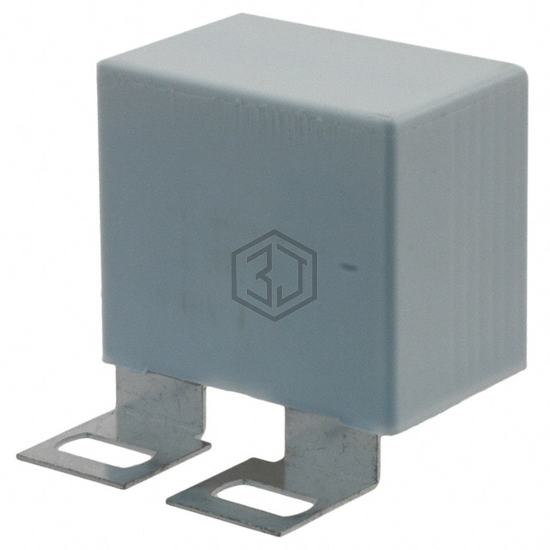

CAP FILM 1.2UF 5% 1.2KVDC SCREW
C4BSPBX4120ZBJJ is a Film Capacitors manufactured by KEMET. CAP FILM 1.2UF 5% 1.2KVDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - dc 1200V (1.2kV), package / case Rectangular Box.
In Stock: 5,181
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1.2 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 630V |
| Voltage Rating - DC | 1200V (1.2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 2.8 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.673" L x 1.102" W (42.50mm x 28.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Termination | Screw Terminals |
| Lead Spacing | 0.866" (22.00mm) |
| Applications | DC Link, DC Filtering; Snubber |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 125HC3B600K2SM6 | Cornell Dubilier / Illinois Capacitor | CAP FILM 1.2UF 10% 600VAC CHASSI | 99% | View |
| 125HC2600K2SM6 | Cornell Dubilier / Illinois Capacitor | CAP FILM 1.2UF 10% 600VAC CHASS | 99% | View |
| 125HC3600K4TM6 | Cornell Dubilier / Illinois Capacitor | CAP FILM 1.2UF 600VAC CHAS MT | 99% | View |
| MKP386M512125JT1 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1.2UF 5% 1.25KVDC SCREW | 98% | View |
| MKP386M512125JT3 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1.2UF 5% 1.25KVDC SCREW | 98% | View |
| PMB2104120KBN | Nichicon | FILM CAP BOXED LUGS | 96% | View |
Submit your RFQ for C4BSPBX4120ZBJJ and get a quote within 24 hours.
