CAP ALUM 10000UF 20% 10V RADIAL

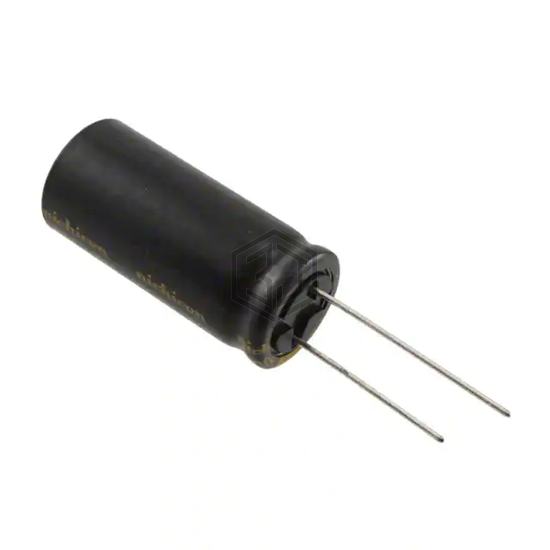

UKW1A103MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 39
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 2.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.875 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for UKW1A103MHD and get a quote within 24 hours.
