Cornell Dubilier / Illinois Capacitor
CAP ALUM 10000UF 20% 16V SNAP

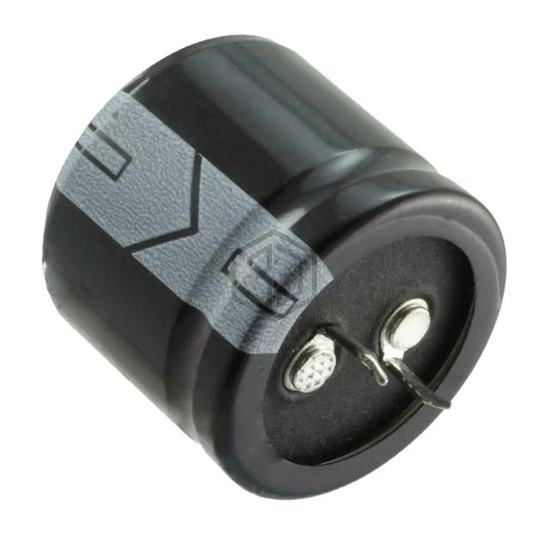

109LBA016M2CC is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 10000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 2,587
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 82.89mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.76 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.45 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX103M016H012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 16V SNAP | 98% | View |
| THA103M016AC1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 16V FLATPCK | 92% | View |
| MAL214264103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 10V RADIAL | 72% | View |
| NEH10000M10HF | NTE Electronics, Inc | CAP ALUM 10000UF 20% 10V AXIAL | 70% | View |
| 35USC10000MEFCSN30X30 | Rubycon | CAP ALUM 10000UF 20% 35V SNAP | 68% | View |
| 109LBB050M2CH | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10000UF 20% 50V SNAP | 65% | View |
