Cornell Dubilier / Illinois Capacitor

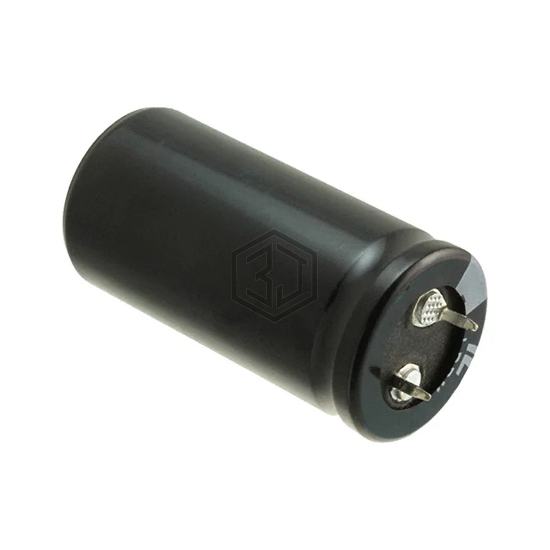

CAP ALUM 10000UF 20% 50V SNAP
109LBB050M2CH is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 10000UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 9,862
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 33.16mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.625 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 53D103G050JT7 | Vishay Sprague | CAP ALUM 10000UF 50V AXIAL | 100% | View |
| MAL205677103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 40V SNAP | 87% | View |
| 35USC10000MEFCSN30X30 | Rubycon | CAP ALUM 10000UF 20% 35V SNAP | 86% | View |
| LKS1J103MESC | Nichicon | CAP ALUM 10000UF 20% 63V SNAP | 85% | View |
| MAL205057103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 40V RADIAL | 82% | View |
| 53D103G035JS6 | Vishay Sprague | CAP ALUM 10000UF 35V AXIAL | 77% | View |
Submit your RFQ for 109LBB050M2CH and get a quote within 24 hours.
