Cornell Dubilier / Illinois Capacitor

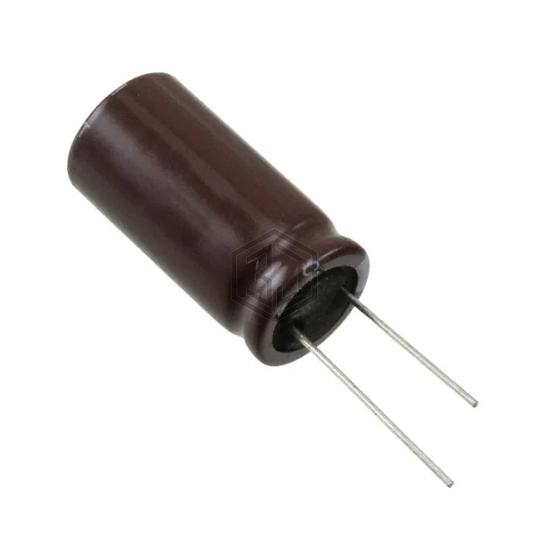

CAP ALUM 10000UF 20% 10V RADIAL
109CKE010MQW is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 10000UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 7,310
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 61.3mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.98 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.772 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 109CKH010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10000UF 20% 10V RADIAL | 99% | View |
| 10PX10000MEFC16X25 | Rubycon | CAP ALUM 10000UF 20% 10V RADIAL | 95% | View |
| 10YXH10000MEFC16X40 | Rubycon | CAP ALUM 10000UF 20% 10V RADIAL | 82% | View |
| LGU1E103MELB | Nichicon | CAP ALUM 10000UF 20% 25V SNAP | 70% | View |
| 16WXA10000MEFC18X25 | Rubycon | CAP ALUM 10000UF 20% 16V RADIAL | 70% | View |
| SLP103M025E3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 25V SNAP | 62% | View |
Submit your RFQ for 109CKE010MQW and get a quote within 24 hours.
