CAP ALUM 10000UF 20% 25V SNAP

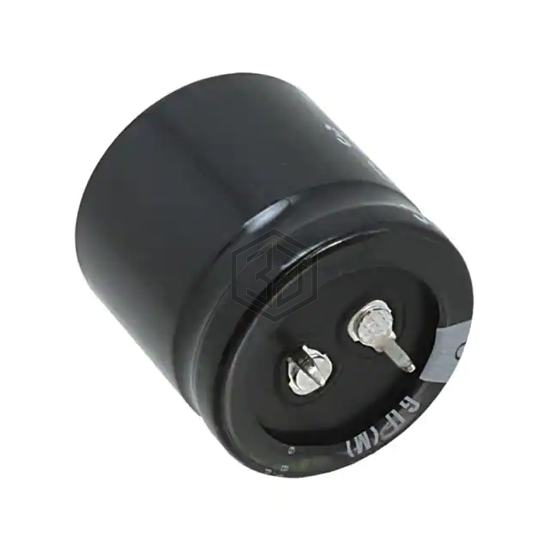

LGU1E103MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 217
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.61 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.0015 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25MXC10000MEFCSN22X40 | Rubycon | CAP ALUM 10000UF 20% 25V SNAP | 100% | View |
| 381LQ103M025J022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 25V SNAP | 93% | View |
| EEU-HD1E103 | Panasonic Electronic Components | CAP ALUM 10000UF 20% 25V RADIAL | 92% | View |
| SLP103M025E3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 25V SNAP | 91% | View |
| 109CKH010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10000UF 20% 10V RADIAL | 72% | View |
| 16WXA10000MEFC18X25 | Rubycon | CAP ALUM 10000UF 20% 16V RADIAL | 71% | View |
