Cornell Dubilier / Illinois Capacitor
CAP FILM 10UF 10% 700VAC CHAS MT

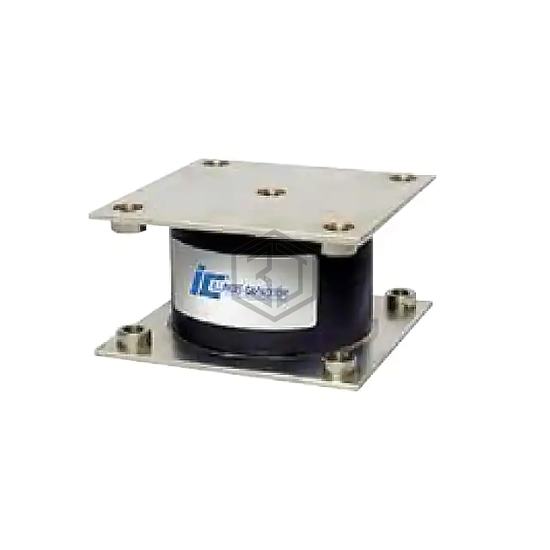

106LC5700K5PM8 is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 10UF 10% 700VAC CHAS MT. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - ac 700V, package / case Nonstandard.
In Stock: 6,657
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 700V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 0.6 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 3.937" L x 3.937" W (100.00mm x 100.00mm) |
| Height - Seated (Max) | 2.146" (54.50mm) |
| Termination | Threaded, Female |
| Lead Spacing | - |
| Applications | Conduction Cooled; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 106HC5700KR | Cornell Dubilier / Illinois Capacitor | CAP FILM 10UF 10% 700VAC AXIAL | 100% | View |
| C44ASGP5100ZA0J | KEMET | CAP FILM 10UF 5% 1.5KVDC RADIAL | 98% | View |
| 5MPA2106J | Electronic Concepts Inc. | 10UF/5%/530VAC | 95% | View |
| B33331V7106J080 | EPCOS - TDK Electronics | CAP FILM 10UF 5% 460VAC RADIAL | 93% | View |
| MKP386M610085YT7 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10UF 5% 850VDC SCREW | 92% | View |
| MKP386M610085YT2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10UF 5% 850VDC SCREW | 92% | View |
