Cornell Dubilier / Illinois Capacitor
CAP FILM 10UF 10% 700VAC AXIAL

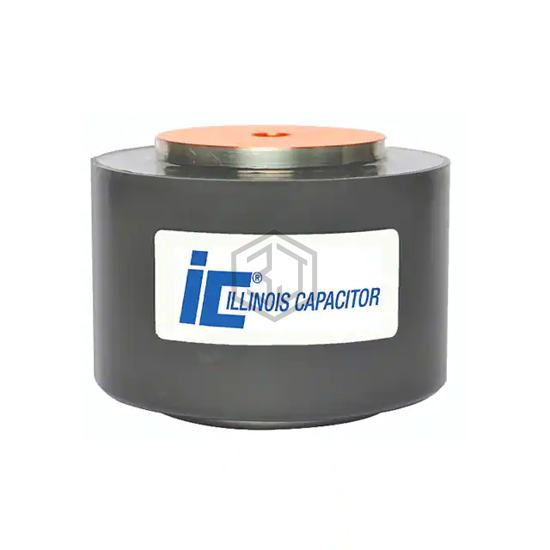

106HC5700KR is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 10UF 10% 700VAC AXIAL. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - ac 700V, package / case Axial, Can - Screw Terminals.
In Stock: 4,519
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 700V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 0.6 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Axial, Can - Screw Terminals |
| Size / Dimension | 3.740" Dia (95.00mm) |
| Height - Seated (Max) | 2.819" (71.60mm) |
| Termination | Threaded, Female |
| Lead Spacing | - |
| Applications | Conduction Cooled; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 106LC5700K5PM8 | Cornell Dubilier / Illinois Capacitor | CAP FILM 10UF 10% 700VAC CHAS MT | 100% | View |
| C44ASGP5100ZA0J | KEMET | CAP FILM 10UF 5% 1.5KVDC RADIAL | 98% | View |
| 5MPA2106J | Electronic Concepts Inc. | 10UF/5%/530VAC | 95% | View |
| MKP386M610085YT6 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10UF 5% 850VDC SCREW | 92% | View |
| MKP386M610085YT7 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10UF 5% 850VDC SCREW | 92% | View |
| MKP386M610085YT2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10UF 5% 850VDC SCREW | 92% | View |
Submit your RFQ for 106HC5700KR and get a quote within 24 hours.
