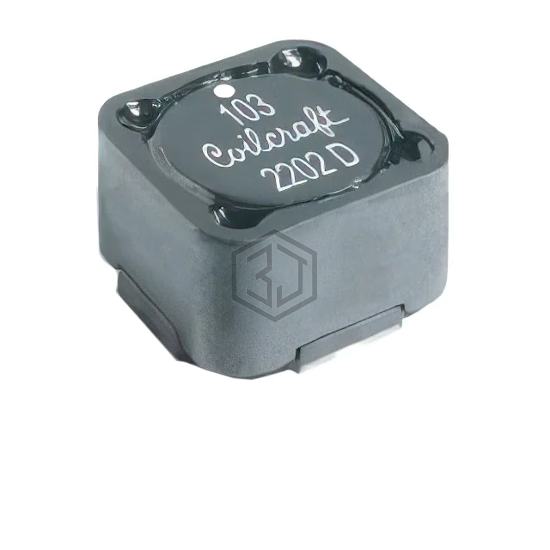

FIXED INDUCTOR 33UH SMD
MSD1278H-333MED is a Arrays, Signal Transformers manufactured by COILCRAFT. FIXED INDUCTOR 33UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.484" L x 0.484" W (12.30mm x 12.30mm).
In Stock: 5,416
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 33 µH |
| Inductance - Connected In Series | 132 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | - |
| Current Rating - Series | - |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 43mOhm Max |
| DC Resistance (DCR) - Series | 172mOhm Max |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.484" L x 0.484" W (12.30mm x 12.30mm) |
| Height | 0.317" (8.05mm) |
Submit your RFQ for MSD1278H-333MED and get a quote within 24 hours.
