RELAY GEN PURPOSE SPST 30A 48V

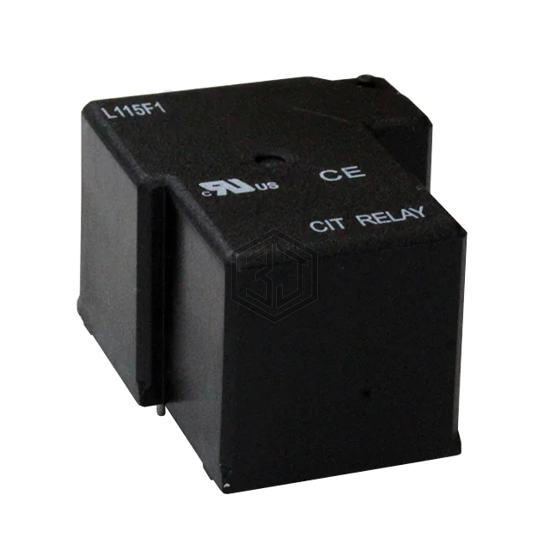

L115F11AM48VDCS.9U is a Power Relays, Over 2 Amps manufactured by CIT Relay and Switch. RELAY GEN PURPOSE SPST 30A 48V. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, contact material Silver Tin Oxide Indium Oxide (AgSnOInO), termination style PC Pin.
In Stock: 5,632
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 48VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 277VAC, 110VDC - Max |
| Coil Current | 18.8 mA |
| Coil Type | Latching, Single Coil |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 38.4 VDC |
| Must Release Voltage | - |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Operating Temperature | -55°C ~ 125°C |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Relay Type | General Purpose |
