RELAY GEN PURPOSE DPDT 20A 240V

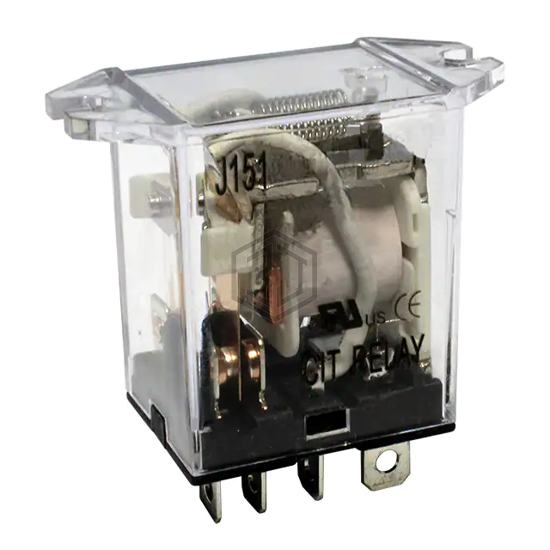

J1512CF240VAC1.2D is a Power Relays, Over 2 Amps manufactured by CIT Relay and Switch. RELAY GEN PURPOSE DPDT 20A 240V. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, contact material Silver Cadmium Oxide (AgCdO), termination style Plug In.
In Stock: 190
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 240VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 300VAC - Max |
| Coil Current | 12.6 mA |
| Coil Type | Non Latching |
| Features | Lighted Indicator |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 192 VAC |
| Must Release Voltage | 72 VAC |
| Operate Time | 25 ms |
| Release Time | 25 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
Submit your RFQ for J1512CF240VAC1.2D and get a quote within 24 hours.
