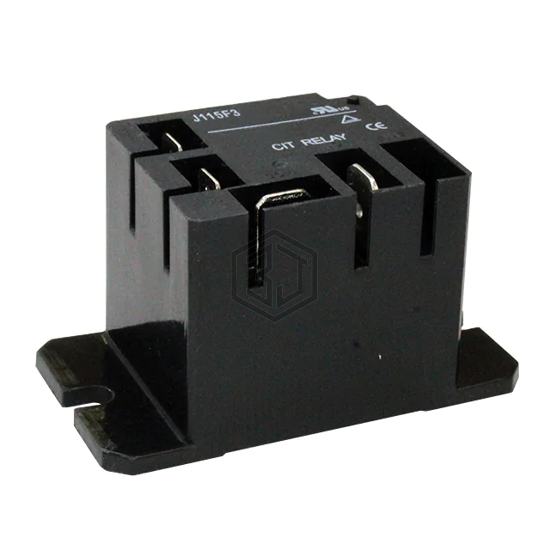

RELAY GEN PURPOSE SPDT 50A 48V
J115F31CH48VDCS61.5U is a Power Relays, Over 2 Amps manufactured by CIT Relay and Switch. RELAY GEN PURPOSE SPDT 50A 48V. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 125°C, contact material Silver Tin Oxide Indium Oxide (AgSnOInO), termination style Quick Connect - 0.187"/0.250".
In Stock: 195
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 48VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 50 A |
| Switching Voltage | 277VAC, 110VDC - Max |
| Coil Current | 31.3 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.187"/0.250" |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 36 VDC |
| Must Release Voltage | 4.8 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -55°C ~ 125°C |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Relay Type | General Purpose |
Submit your RFQ for J115F31CH48VDCS61.5U and get a quote within 24 hours.
