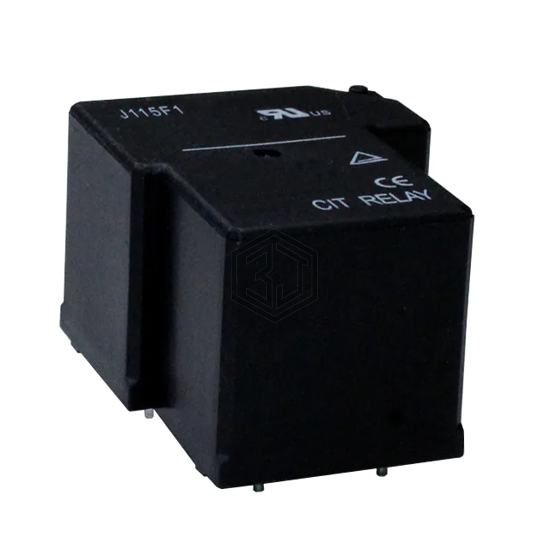

RELAY GEN PURPOSE SPST 40A 48V
J115F11A48VDCSH.9 is a Power Relays, Over 2 Amps manufactured by CIT Relay and Switch. RELAY GEN PURPOSE SPST 40A 48V. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, contact material Silver Tin Oxide (AgSnO), termination style PC Pin.
In Stock: 300
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 48VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 40 A |
| Switching Voltage | 277VAC, 110VDC - Max |
| Coil Current | 18.8 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 36 VDC |
| Must Release Voltage | 4.8 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -55°C ~ 125°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
Submit your RFQ for J115F11A48VDCSH.9 and get a quote within 24 hours.
