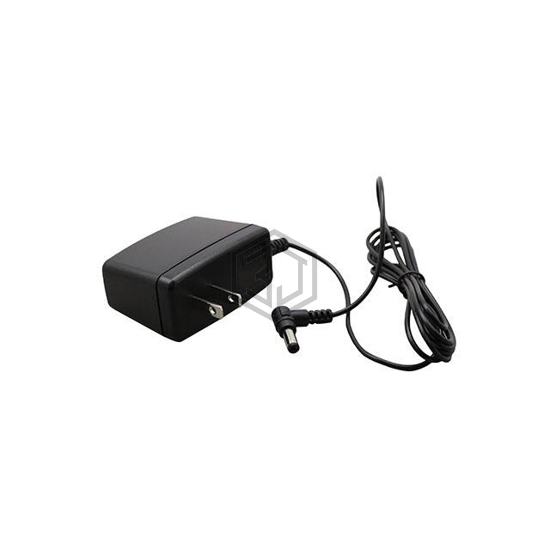

AC/DC WALL MOUNT ADAPTER 24V 25W
TRH25240-A-01E03 VI is a AC DC Desktop, Wall Adapters manufactured by Cincon Electronics Co. LTD. AC/DC WALL MOUNT ADAPTER 24V 25W. Key specifications: operating temperature -20°C ~ 60°C, voltage - input 90 ~ 264 VAC, current - output (max) 1.05A, size / dimension 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm).
In Stock: 38
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Region Utilized | North America |
| Form | Wall Mount (Class II) |
| Input Type | Fixed Blade |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 1.05A |
| Power (Watts) | 25 W |
| No Load Power Consumption | 75mW (Max) |
| Polarization | - |
| Applications | ITE (Commercial) |
| Efficiency | Level VI, CoC Tier 2 |
| Operating Temperature | -20°C ~ 60°C |
| Output Connector | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm |
| Cord Length | 70.9" (1.80m) |
| Input Connector | NEMA 1-15P |
| Features | - |
| Size / Dimension | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) |
| Approval Agency | CE, cULus, GS, TUV |
| Standard Number | - |
Submit your RFQ for TRH25240-A-01E03 VI and get a quote within 24 hours.
