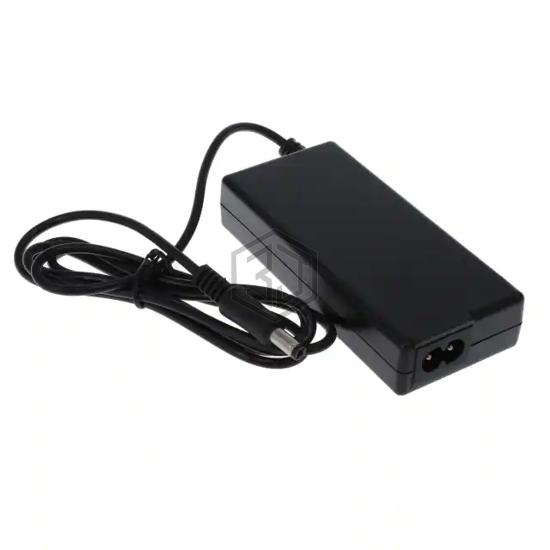

AC/DC DESKTOP ADAPTER 9V 37W
TRG36A09-11E02 VI is a AC DC Desktop, Wall Adapters manufactured by Cincon Electronics Co. LTD. AC/DC DESKTOP ADAPTER 9V 37W. Key specifications: operating temperature -20°C ~ 60°C (With Derating), voltage - input 90 ~ 264 VAC, current - output (max) 3A, size / dimension 4.37" L x 2.01" W x 0.89" H (111.0mm x 51.0mm x 22.5mm).
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Region Utilized | International |
| Form | Desktop (Class II) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 9V |
| Current - Output (Max) | 3A |
| Power (Watts) | 37 W |
| No Load Power Consumption | 75mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI, CoC Tier 2 |
| Operating Temperature | -20°C ~ 60°C (With Derating) |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 12.0mm |
| Cord Length | 48" (1.22m) |
| Input Connector | IEC 320-C8 |
| Features | - |
| Size / Dimension | 4.37" L x 2.01" W x 0.89" H (111.0mm x 51.0mm x 22.5mm) |
| Approval Agency | CE, cULus, FCC, GS, PSE, TUV |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for TRG36A09-11E02 VI and get a quote within 24 hours.
